Flat Pattern Bend for PC

Flat Pattern Bend is a specialized calculator for fabricators and ductwork professionals who need to generate precise flat patterns for sheet metal and pipe construction. When you're laying out a lobsterback bend, tee piece, frustum cone, or transition segment, the app computes the dimensions you'll use as a cutting template. On a desktop computer, the app stays Flat Pattern Bend open alongside design files, reference sheets, and communication tools, entering measurements and generating patterns without switching between devices or losing your workspace.

Flat Pattern Bend serves fabricators, HVAC technicians, and sheet metal workers who cut and form pipe, ductwork, and tanks. The calculator handles a wide range of geometries: from simple elbows to complex transitions between square and round openings, oblique cones, and auger segments. Each calculation outputs the flat pattern dimensions needed to cut material accurately before bending or rolling it into the final shape. Running Flat Pattern Bend on a PC provides a stable, persistent workspace where you can reference the app for hours without battery drain, keep notes and images in adjacent windows, and return to the same session across work days.

Core Shapes and Calculations

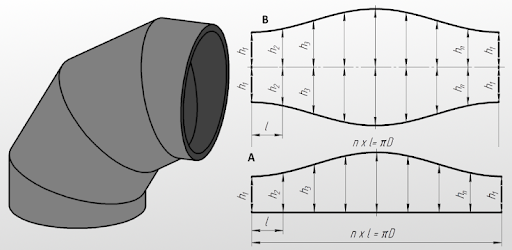

The app calculates patterns for common fabrication geometry: lobsterback bends, elbows, tee pieces, frustum cones, flat-back cones, oblique cone tees, and offset tees. It also handles transitions from square or rectangular openings to round pipe, transitions between two rectangular dimensions, and truncated cones with an accessible vertex. Each calculation method relies on triangulation to unfold the 3D geometry into a flat, cuttable layout. Wall thickness is factored in which means you can produce parts that fit standard schedules and tolerances.

Accuracy and Time on the Desktop

One of the biggest gains when you use Flat Pattern Bend for Windows PC is the speed and consistency it brings to layout work. Hand-drawing patterns is slow and prone to compounding errors; the calculator eliminates that step. Users report that the app saves significant time during complex fabrication, especially in cement company non-standard work, where custom ductwork and tanks require multiple different shapes. You can generate a pattern, print it, refine the cutting plan, and store the file all within one session.

Professional Application in HVAC and Mechanical Work

Flat Pattern Bend enables the full range of activities in air duct design, vent systems, and pressure vessel fabrication. Tank building, stack construction, and air conditioning ductwork all rely on accurate flat patterns to move from design to production. The app is particularly valuable in specialized roles like non-standard fabrication at industrial plants, where each job is custom and hand calculation would be impractical. Installers keep Flat Pattern Bend on computer alongside their CAD and measurement tools, referencing it in real time as they prepare material or troubleshoot a fit.

Integration Into Your Workflow

When you install Flat Pattern Bend on PC, the app becomes part of your everyday toolkit. You can open it in one window, keep your email or messaging in another, and toggle between them without losing your calculation history. The interface is straightforward: enter dimensions, select the shape type, and the pattern is ready. Because it runs on a larger screen with keyboard input, you can work faster and with fewer mistakes than tapping mobile controls on a jobsite. The paid version removes export restrictions and unlocks formats like DXF, making it practical for sending patterns directly to cutting machines or CAD programs.
