Mixing Station Qu for PC

Audio engineers and live sound operators rely on remote mixer control to adjust levels and settings away from the console during setup and performance. Mixing Station Qu brings the Allen & Heath Qu series mixer into your workflow on a full computer, letting you manage channels, groups, and dynamics from your desk rather than returning to the physical unit. The app translates core mixer functions into a tablet-style interface, with routing controls, real-time analysis overlays, and customizable layer organization across up to 32 visible channels per layout.

Running Mixing Station Qu on PC keeps your mixer control centralized in one place alongside other production software, emails, and documentation. Whether you're mixing monitors at a live event, adjusting foldback levels during sound check, or fine-tuning settings from a control position, having the app on a computer eliminates the need to step between devices or hold a tablet at arm's length.

How the App Connects to Your Mixer

Mixing Station Qu communicates directly with Qu-16, Qu-24, Qu-32, Qu-Pac, or Qu-SB units running firmware version 1.90 or higher. The connection happens over your network, allowing you to stay seated at your PC while adjusting remote mixer parameters. Note that only one instance of the app can connect to the mixer at a time due to the mixer's MIDI protocol limits: this prevents conflicts but means you cannot run the app on multiple machines simultaneously to control the same desk.

Core Workflow During a Session

A typical session with Mixing Station Qu on PC unfolds like this:

1. Open the app and enter your mixer's network credentials to establish the connection.
2. Navigate through customizable layers to view and control channel groups relevant to your current task.
3. Adjust fader levels, mute groups, and dynamics gates directly from your PC keyboard and mouse.
4. Use the real-time analysis overlay to monitor and shape equalization settings visually.
5. Switch between DCA groups and mute configurations without leaving your control position.
6. Close the app when finished; reconnect any time using the same credentials.

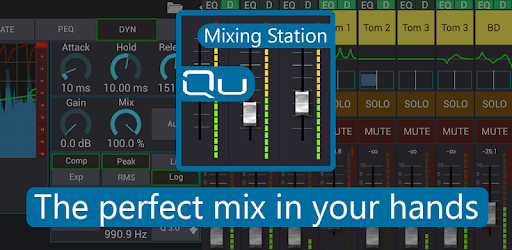

Tablet Mixer Control Interface on Desktop

The app's layout mirrors a tablet mixer control interface, organized into customizable layers and channel strips. You can reorder channels, rename DCA groups, and adjust mutegroup labels to match your specific rig. The free version includes unlimited DCA group creation and peak hold meters for all faders. The pro version adds features like RTA averaging, level timelines for gate and dynamics visualization, PEQ preview in the channel strip, and high contrast mode for outdoor or bright environments: useful if you run your PC display in harsh sunlight during outdoor events.

Limitations and Practical Considerations

Users should expect that the app requires reentering network credentials each time it reconnects: the password does not persist between sessions or if the app suspends in the background, a minor inconvenience on a stationary PC but a necessary security measure. Some advanced mixer features remain unavailable through the remote interface, such as direct access to effects parameters, output delay settings, and aux send adjustments across multiple mixes. These gaps mean the app serves as a companion tool for core mixing tasks rather than a complete mixer replacement. Firmware compatibility also matters; newer firmware versions may require verification before the app connects smoothly. If you need Mixing Station XM32 control as well, note that this app is specific to the Qu series lineup.
